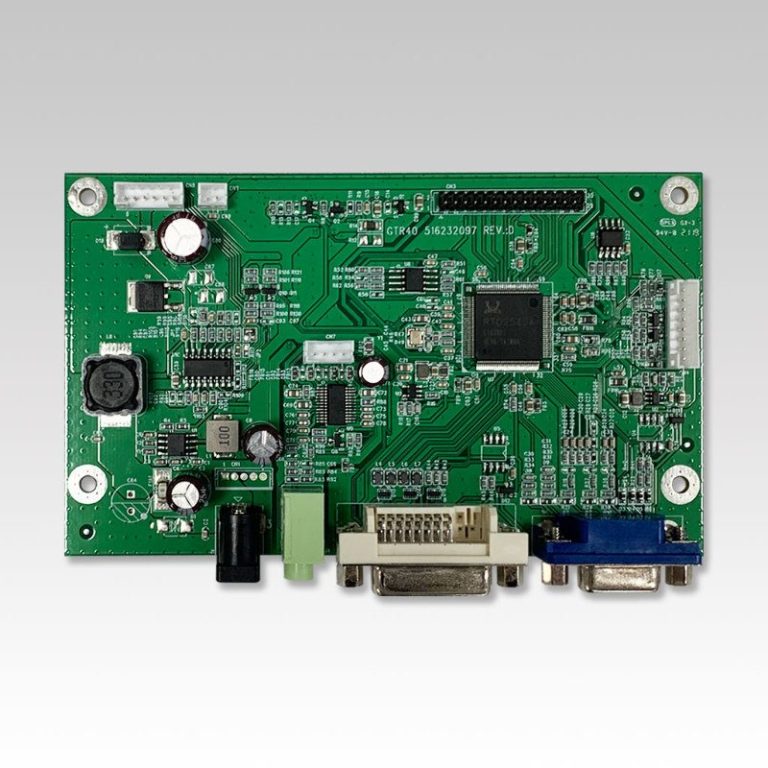

PixelPro LCD Control Hub
The special functions of the PixelPro LCD Control Hub Boards, including DDC/CI support, OSD via RS232, PiP, PbP, FRC and gamma colour calibration (e.g. DICOM), open up cost-effective integration options in demanding monitor applications. In addition, temperature, ambient light, proximity and acceleration sensors (shock sensors) can be easily integrated.
DESCRIPTION
Resolution:
up to 1920 X 1080 @ 60 Hz.
Output:
Dual port 6/8 bits LVDS Interface to panel
Speaker 8 Ohm - 1.6W + 1.6W
Input:
VGA connector x 1
DVI connector x 1
Audio phone jack-in x 1
LED Driver:
output Voltage Max - 68V
output Current Max - 240mA
The PixelPro LCD Control Hub Board is the display driver unit for a monitor that converts real world analog visual signals into digital form which is an essential component that gives the monitor its fundamental displaying capability.
Our PixelPro LCD Control Hub Board is designed with wide range of application in mind. It provides state of the art display functionality that can be used as a standalone display driver module to support combination of customers specified input (i.e. HDMI, VGA, DVI, and Display Ports...) and output (i.e. EDP, LVDS, V-By-One) to meet developer’s specific requirement whether it be industrial display, measuring equipment, POS machine, LCD monitor, Digital Signage, and Kiosk.
● On-board Realtek solution offers top notch reliability, precision, and robustness.
● Up to 1920x1080 resolution @ 60Hz.
● We provide detailed technical parameters for best performance.
