OptiView Graphics Controller

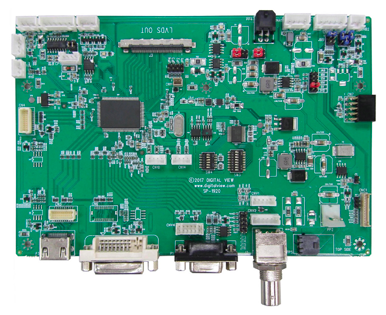

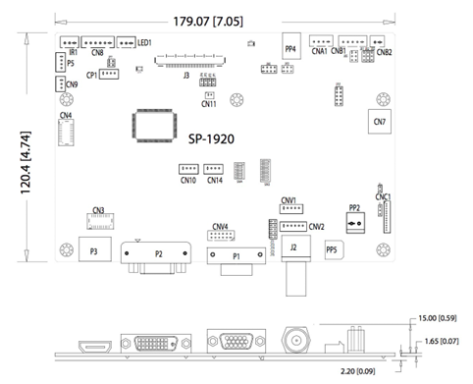

The OptiView Graphics Controller is an interface board converting video signals such as HDMI, DVI, VGA and Composite to the signals required by compatible LCD panels such as from AUO, BOE, Innolux, LG Display, Samsung, Sharp and others. It also provides media playback, image management functions as well as monitoring and control features for the finished monitor or display system. The SP-1920 is supported by a wide selection of panel connection cables and other accessories together with system development documentation, 3D drawings and engineering support for customization.

DESCRIPTION

LCD support: 1920x1200, 10-Bit »

Panel connectivity: LVDS

Inputs:

  • HDMI x2, DVI, VGA, Component, Composite x2
  • Integrated H.264 media player / failover
  • Separate power in for high power panels
  • RS-232 control, IR remote control

Part number: 4176000xx-3.

The  OptiView Graphics Controller is an interface board converting video signals such as HDMI, DVI, VGA and Composite to the signals required by compatible LCD panels such as from AUO, BOE, Innolux, LG Display, Samsung, Sharp and others. It also provides media playback, image management functions as well as monitoring and control features for the finished monitor or display system. The  OptiView Graphics Controller is supported by a wide selection of panel connection cables and other accessories together with system development documentation, 3D drawings and engineering support for customization.

The OptiView Graphics Controller has an equivalent model for harsher environments. The feature set of the OptiView Graphics Controller ensures suitability for many commercial display applications such as digital signage and corporate AV.
